Era SL Wheel Explained
Era SL Wheel Explained
What makes Era SL the definitive downcountry wheel?
Get Racing.
Get Rowdy.
Compliance In The Vault
Long Live Downcountry.
Not your typical XC race wheel. Not a strength-forward Enduro wheel. Era SL is the happy medium, designed specifically for the mass of riders who sit happily in between. Era SL is built for Downcountry. Lifetime Warranty, crashes included.

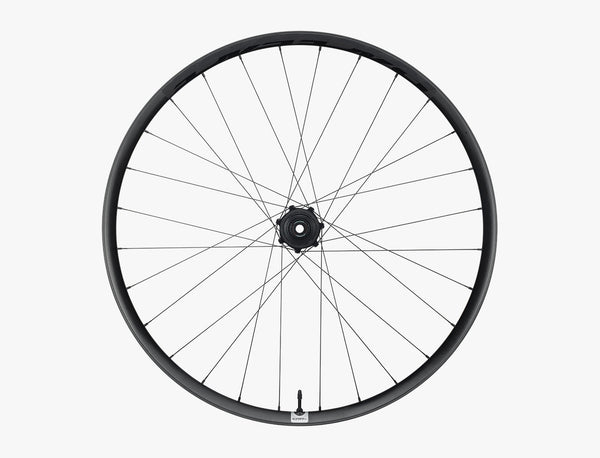

Era SL Wheels
Rider Style
Specs
| Color | Black |
| Includes | 5 extra spokes included with rear wheels |
| Material | Carbon Fiber |
| Nipples | Black alloy nipples |
| Int Rim Width | 29mm |
| Rotor Mount | 6-bolt and Centerlock options available |
| Front Hub Model | 15x110 Boost – Vault 415 |
| Front Hub Endcap Compatibility | Vault 415 hub – 15x110 Boost (F60100) / 15x110 Boost Torque Cap (F60122) |
| Rear Hub Model | 12x148 Boost – Vault 424 12x157 Super Boost – Vault 422 |
| Rear Hub Endcap Compatibility | Vault 424 – 12x148 Boost (F60063) Vault 422 – 12x157 Super Boost (F60063) / 12x150 (F60066) |
| Spoke Offset | 3mm |
| Tubeless | Tubeless ready, taped with valve |
| Weight | 29" CL - 1494g / 29" 6-bolt - 1530g |
| Weight Conditions | Wheelset without tape or valves |
| System Weight Rating | 130kg (286 lbs) |
| eMTB Usage Rating | 6-bolt - 65Nm of Torque / CL - not eMTB approved |
| Spoke Length 29" | Front: 303mm, Rear: 303mm |
| Spokes | Straight Pull, 28 hole, 3x lacing, 2.0/1.5/2.0 Butting |
| Max Rear Wheel Travel | 140mm |
Frequently asked questions
Can I perform maintenance on the Vault hubs myself?
While the Vault hubs are engineered for long-term durability and feature robust, large-diameter bearings for consistent, high-performance engagement, we strongly recommend professional installation and maintenance to ensure optimal performance. Professional servicing ensures that components are handled correctly, maintaining the integrity and ride quality of your carbon wheelset over time.
Are the wheels tubeless ready?
Yes, the Era SL wheels are tubeless ready and come taped with a valve included, making setup straightforward for a tubeless tire system.
What maximum tire size can be used?
The Era SL wheels feature a 29mm internal rim width, which is optimized for modern XC and Trail riding. This width is specifically designed to accommodate tires up to 2.6 inches, promoting enhanced traction and low rolling resistance.
What is the maximum weight limit?
The Era SL wheels have a maximum system weight rating of 130kg (286 lbs). This rating includes the combined weight of the rider, the bike, and any gear being carried.
How many spokes are included with the wheels?
Each wheel features 28 spokes with a 2.0/1.5/2.0 butting and a straight pull head type. Additionally, 5 extra spokes are included with rear wheels for convenience.
Are these wheels suitable for both XC and trail riding?
Yes, the Era SL wheels are engineered specifically for the “Downcountry” category, bridging the gap between lightweight XC racing efficiency and the durability required for technical trail riding.
Key features that make them versatile for both disciplines include:
- Weight Efficiency: At just 385 grams, the carbon rim is the lightest Race Face has ever produced, allowing for rapid acceleration and climbing momentum essential for cross-country.
- Trail Durability: Despite the low weight, the 22mm rim depth and robust carbon construction are designed to handle technical terrain and impacts confidently.
- Optimized Compliance: The wheel design provides lateral compliance that helps smooth out small bumps and reduces rider fatigue, which is highly beneficial during longer trail sessions.
- Tire Support: With a 29mm internal width, these wheels comfortably support tires up to 2.6 inches wide for enhanced traction and stability on aggressive trails.
Lifetime Warranty, Crashes Included.
Crashes are part of mountain biking. When they happen, we have your back.
