Going back to Race Face's roots, the bomb-proof Atlas wheelset is made for mastering the gnarliest DH lines, floating through rock gardens, and sending the sickest booters. Mount up and hold on for the ride.

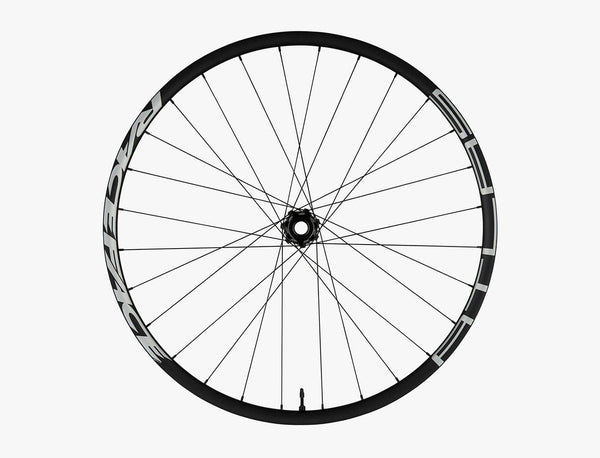

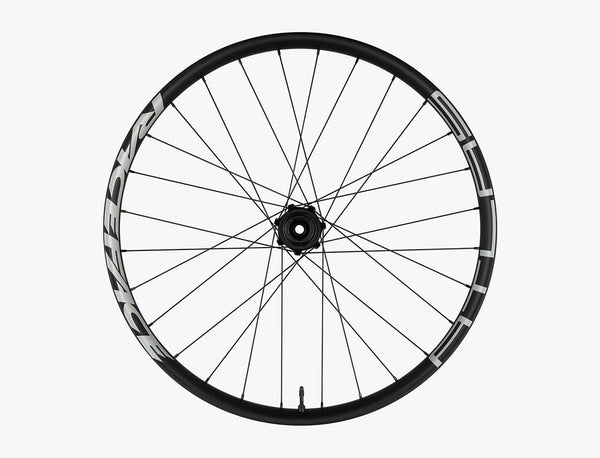

Atlas Wheels
Rider Style
Specs
| Color | Black |
| Includes | 5 extra spokes included with rear wheels All 12 x 150/157 Rear wheels come with hub endcaps installed for 12 x 157 configurations. Endcaps for 12 x 150 configurations included as spares. |
| Material | Aluminum 6069 |
| Nipples | Black alloy nipples |
| Ext Rim Width | 34 mm |
| Int Rim Width | 30 mm |
| Spoke Butting | 2.0/1.8/2.0 |
| Spoke Count | 28 |
| Spoke Head Type | Straight pull |
| Spoke Lacing | 3X |
| Spoke Offset | 4.5 mm |
| Tubeless | Tubeless ready |
| Weight | 1950 g (27.5"), 2044 g (29") |
| Weight Conditions | Wheelset |
| Spoke Length Front & Rear | 282mm (27.5"), 301mm (29") |
Frequently asked questions
Is the Atlas wheelset tubeless ready?
Yes, the Atlas wheelset is designed to be Tubeless Ready. This feature is essential for maximizing performance and durability across Gravity, All Mountain, and Trail riding.
Running these wheels tubeless provides several key advantages:
- Superior Flat Protection: Tubeless sealant actively prevents and repairs punctures, minimizing maintenance and maximizing time on the trail.
- Enhanced Traction and Comfort: It allows you to safely run lower tire pressures, significantly improving grip and absorbing trail chatter.
- Optimized Durability: The wheelset’s high-strength 6069 aluminum alloy rims, which feature a specific dent and flat-resistant bead design, are optimized for the aggressive demands of tubeless riding.
How quickly does the hub engage?
The Atlas wheels are equipped with the high-performance Vault hub, which boasts a lightning-fast 3-degree engagement. This ensures immediate power transfer and a highly responsive feel on the trails.
What is the spoke count and lacing pattern?
The Atlas wheelset is built with 28 double-butted, straight-pull spokes. They are laced in a 3X pattern with a 4.5 mm spoke offset, a configuration engineered to provide an optimal balance of stiffness, rigidity, and a predictable ride feel for demanding gravity riding.
What is the internal rim width of these wheels?
The Atlas wheelset features an internal rim width of 30mm, paired with an external width of 34mm.
This design is specifically engineered for gravity-fed riding, offering several performance benefits:
- Optimized Tire Support: The 30mm width provides a stable foundation for high-volume tires, enhancing traction and control in technical terrain.
- Increased Durability: Built from 6069 aluminum with a dent- and flat-resistant bead design, these rims are crafted to survive the most demanding downhill and enduro conditions.
- Precision Engineering: Featuring a 4.5mm offset spoke bed, the design balances spoke tension to ensure lasting rigidity and a responsive, predictable ride feel.
Are these wheels compatible with my bike's axle standard?
The Atlas wheelset is engineered to fit a wide variety of gravity and enduro mountain bike setups. They are available in several axle configurations to ensure compatibility with your specific frame and fork requirements:
- Front Axle Options: 20 x 110 Non-Boost and 20 x 110 Boost.
- Rear Axle Options: 12 x 148 (Boost), 12 x 150, and 12 x 157.
- Driver Body Choices: Depending on your drivetrain, you can select from HG, XD, or MS standards.
Please confirm your bike’s frame and fork spacing to select the correct axle and driver body during checkout. As a note, all 12 x 150/157 rear wheels come with 12 x 157 endcaps pre-installed, with 12 x 150 endcaps included as spares.
Are useful spare parts included with these wheels?
Yes, to keep your ride reliable and well-maintained, these wheels include helpful extras:
- Spare Spokes: Every rear wheel comes with five extra spokes included in the box.
- Axle Adaptability: Depending on the specific configuration purchased, the wheels include the necessary axle conversion endcaps to ensure compatibility with your bike setup.
Professional installation is recommended to ensure proper wheel tensioning and a high-quality tubeless setup for your new wheelset.
